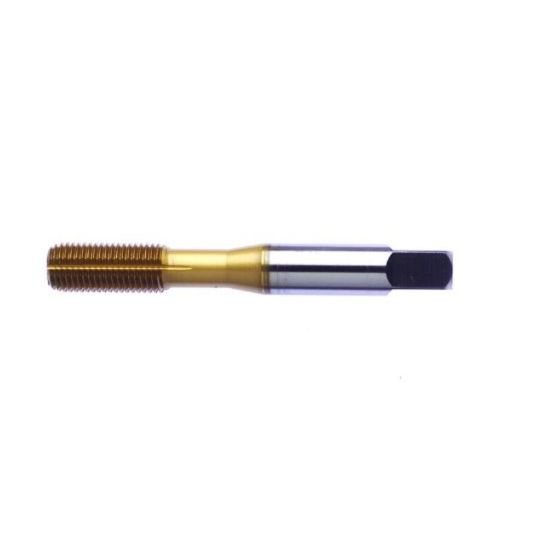

Picture of Vega 01493838TI 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Vega 01493838TI 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Part Number: VEG01493838TI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1173053
Vendor: Sussex Tool and Supply
$34.40
VEGA 1/4"x20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-C
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 1/4"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1890
Tap Chamfer 1.5P-2.5P
