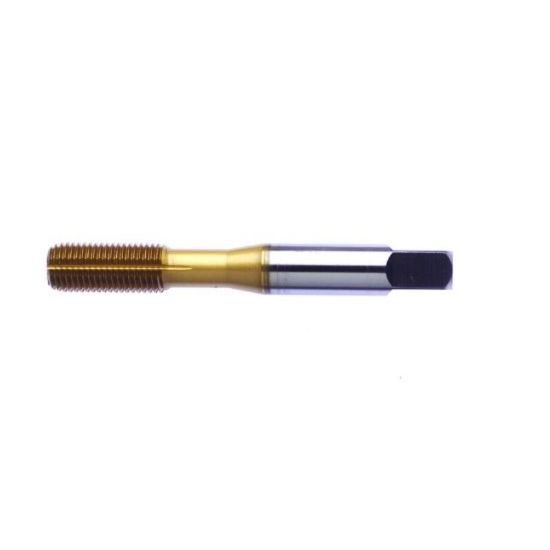

Picture of Vega 01493832TI No.10-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Vega 01493832TI No.10-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Part Number: VEG01493832TI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1173051
Vendor: Sussex Tool and Supply
$30.60
VEGA No.10x32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-C
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 2.3740 60.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size No.10
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1500
Tap Chamfer 1.5P-2.5P
