  • VEGA 01493792TI No.6-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

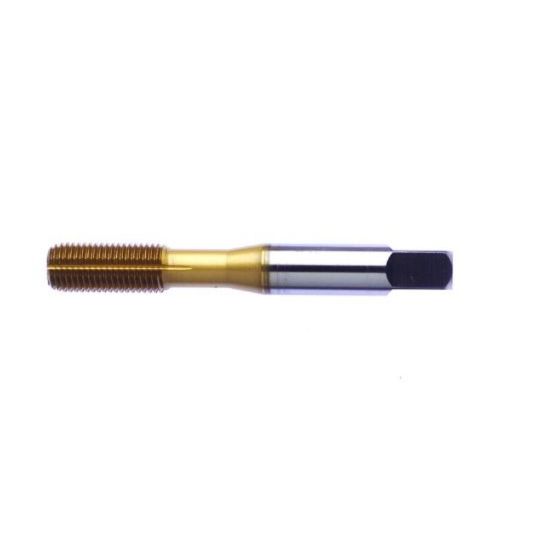

Picture of VEGA 01493792TI No.6-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01493792TI No.6-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493792TI
Delivery date: 3-5 days
$24.96

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiN
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Tap Chamfer 1.5P-2.5P
Thread Size No.6
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Shank/Pilot Dia 0.1410 3.58MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Thread Type NC/UNC
Length Type Standard
Tap Type Bottoming
Flute Direction Roll
Machine Side Connection Type Tap Collet
Tap Square 0.1080
Tap Style Cut Spiral Flute
Thread Limit 2B
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-C
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
