  • VEGA 01493791TI No.6-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

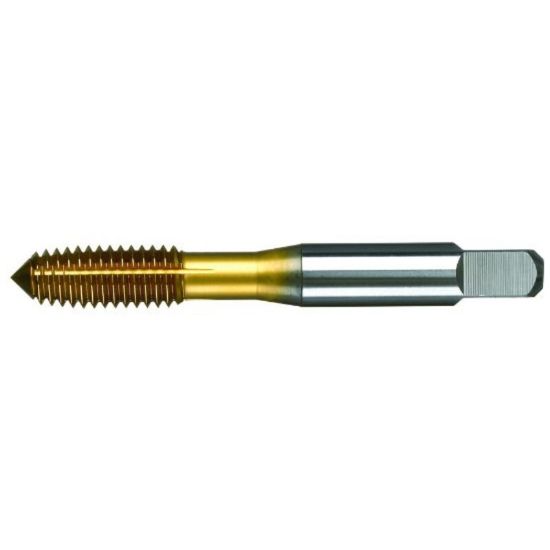

Picture of VEGA 01493791TI No.6-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

VEGA 01493791TI No.6-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493791TI
Delivery date: 3-5 days
$24.96

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Flute Direction Roll
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Type NC/UNC
Tap Square 0.1080
Overall Len 2.0000 50.80MM
Length Type Standard
Thread Size No.6
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Limit 2B
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-C
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
