  • VEGA 01493784TI No.4-40.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

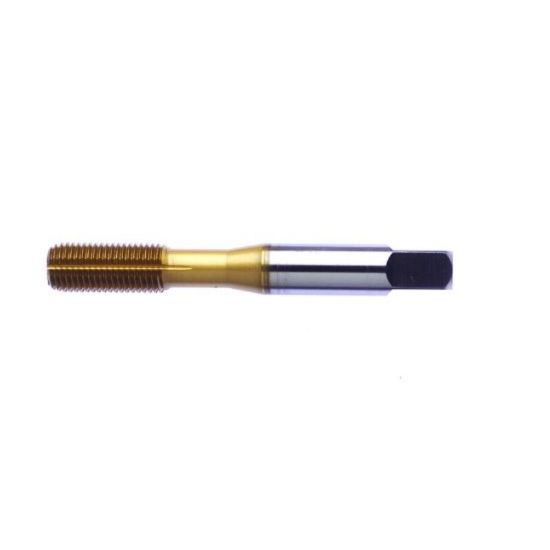

Picture of VEGA 01493784TI No.4-40.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01493784TI No.4-40.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493784TI
Delivery date: 3-5 days
$28.91

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Type NC/UNC
Tap Square 0.1080
Overall Len 1.8750 47.63MM
Thread Size No.4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tool Material Steel
Thread Pitch 40.00TPI
Thread Limit 2B
Flute Direction Roll
Tap Style Cut Spiral Flute
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 1.5P-2.5P
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-C
Industry-Specific Applications
Job Shop Yes
