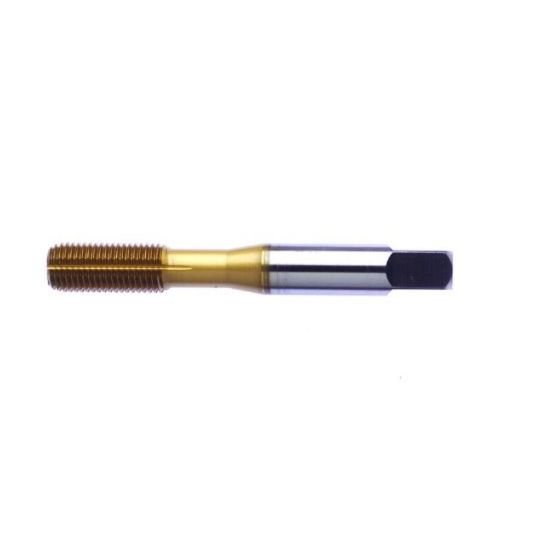

Picture of Vega 01493738TI No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Vega 01493738TI No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Part Number: VEG01493738TI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1173042
Vendor: Sussex Tool and Supply
$45.30
VEGA No.2x56.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-C
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 56.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size No.2
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0768 1.95MM - 0.0791 2.01MM
Tap Square 0.1080
Tap Chamfer 1.5P-2.5P
