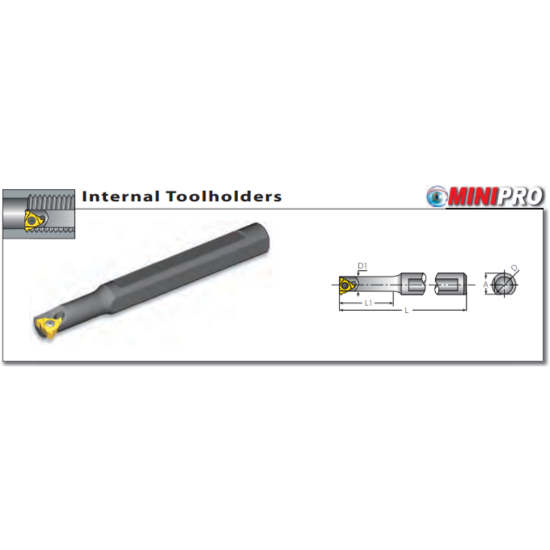

Picture of VARDEX SNVR375U-6.0 Boring Bar Proprietary

VARDEX SNVR375U-6.0 Boring Bar Proprietary

ANSI: SNVR375U-6.0

ISO: SNVR375U-6.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR67338
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Mini3 IC6.0 Holders IN RH Shank Diameter 3/8" (Inch), Tool Overhang 0.63" (Inch), Insert Compatibility for 6.0IR

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Overall Len 3.2300 82.04MM
Neck Dia 0.3200
Tool Material Steel
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Insert Size Ic 6
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style VA
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw SN6MT
