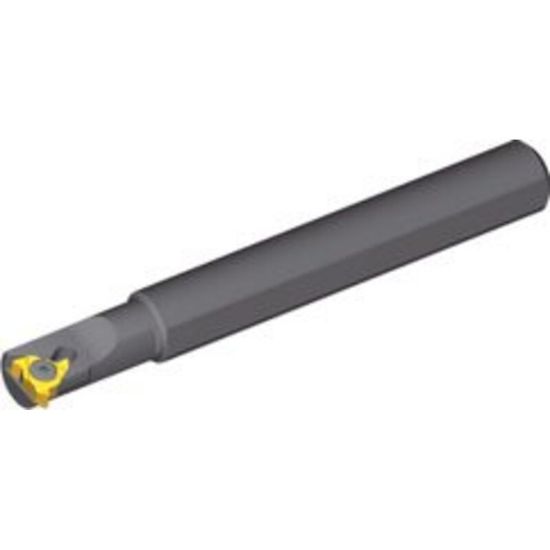

Picture of VARDEX OVR16D-2LH Boring Bar Iso Thread

VARDEX OVR16D-2LH Boring Bar Iso Thread

ANSI: OVR16D-2LH

ISO: OVR16D-2LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66218
Delivery date: 3-5 days
$107.11

Details

Thread Turning Miniature Round Shank Holders EX/IN LH Shank 16 (mm), Insert Compatibility for 2IL

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Application Int.Groove Threading, Int.Threading
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Insert Size Ic 11
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Neck Dia 0.5118
Tool Material Steel
Overall Len 3.9370 100.00MM
Min Bore 0.6299
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Inter/Extern Int / Ext
Hand R/L Left
Fasteners & Connectors
Clamp Screw SN2T
