Picture of VARDEX NVRC250-5MG16ISO Boring Bar Proprietary

VARDEX NVRC250-5MG16ISO Boring Bar Proprietary

ANSI: NVRC250-5MG16ISO

ISO: NVRC250-5MG16ISO

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66469
Delivery date: 3-5 days
$1,371.81

Details

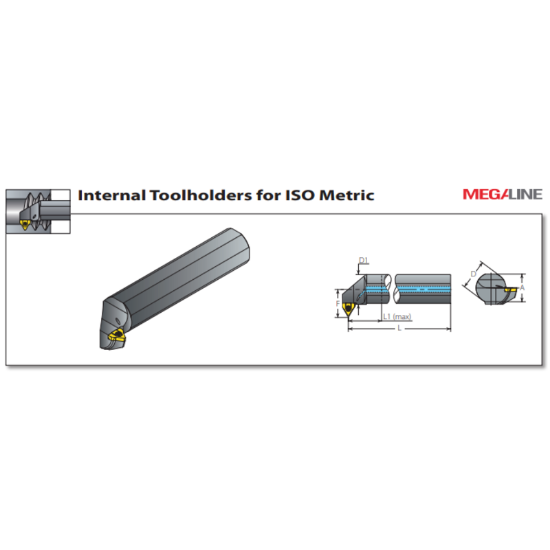

Thread Turning Mega Line Holders IN RH Shank Diameter 2 1/2" (Inch), Tool Overhang 6.26" (Inch), Insert Compatibility for 5MGIR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Positive
Application Int.Threading
Package Size 1
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Insert Size Ic 5MGIR
Tool Material Steel
Shank/Pilot Dia 2.5000 63.50MM -2-1/2
Min Bore 3.1400
Neck Dia 2.4900
Machine Side Connection Size 2.5000 63.50MM
Overall Len 11.1200 282.45MM
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style VA
Hand R/L Right
Coolant Thru Yes
Inter/Extern Internal
Fasteners & Connectors
Clamp Screw S5MG
