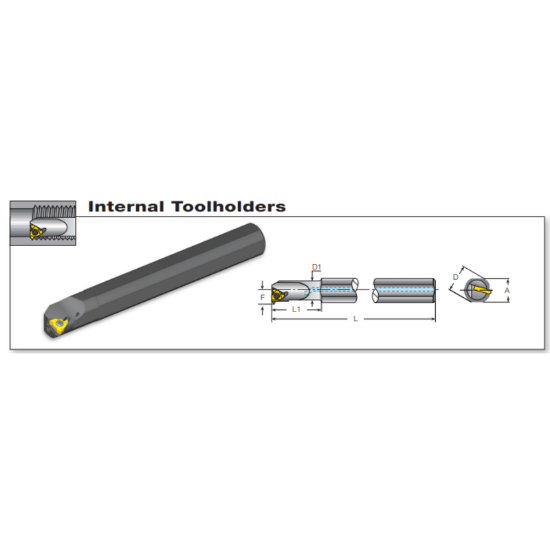

Picture of VARDEX NVRC16D-3 Boring Bar Iso Thread

VARDEX NVRC16D-3 Boring Bar Iso Thread

ANSI: NVRC16D-3

ISO: NVRC16D-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66386
Delivery date: 3-5 days
$100.68

Details

Thread Turning Standard Holders IN RH Shank Diameter 16 (mm), Tool Overhang 64 (mm), Insert Compatibility for 3IR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Insert
Application Int.Groove Threading, Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Insert Size Ic 16
Overall Len 5.9055 150.00MM
Tool Material Steel
Neck Dia 0.6299
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Min Bore 0.7874
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Inter/Extern Internal
Fasteners & Connectors
Clamp Screw SN3T
