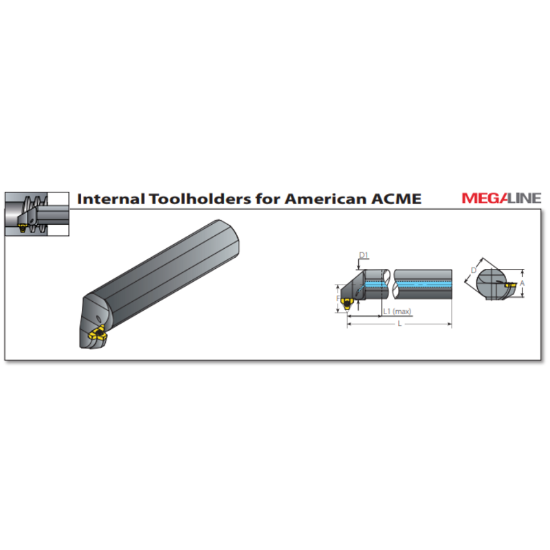

Picture of VARDEX NVRC150-5MG1-1/3ACME Boring Bar Proprietary

VARDEX NVRC150-5MG1-1/3ACME Boring Bar Proprietary

ANSI: NVRC150-5MG1-1/3ACME

ISO: NVRC150-5MG1-1/3ACME

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66444
Delivery date: 3-5 days
$891.66

Details

Thread Turning Mega Line Holders IN RH Shank Diameter 1 1/2" (Inch), Tool Overhang 3.74" (Inch), Insert Compatibility for 5MGIR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Int.Threading
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 5MGIR
Tool Material Steel
Machine Side Connection Type Boring Bar
Neck Dia 1.4900
Machine Side Connection Size 1.5000 38.10MM
Min Bore 2.2500
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 9.1500 232.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style VA
Hand R/L Right
Inter/Extern Internal
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw S5MG
