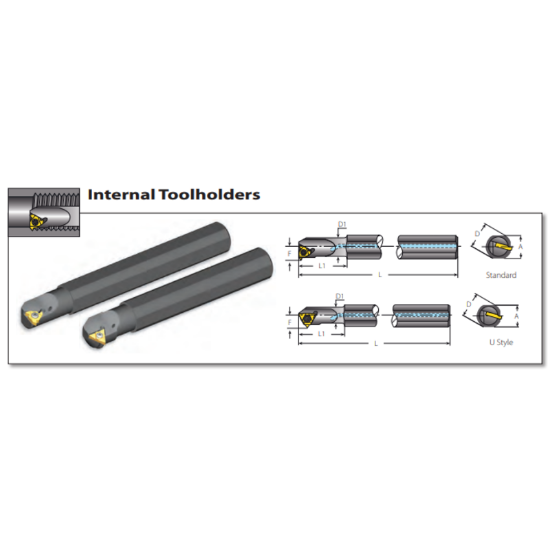

Picture of VARDEX NVRC15-3ULH-156/031 Boring Bar Iso Thread

VARDEX NVRC15-3ULH-156/031 Boring Bar Iso Thread

ANSI: NVRC15-3ULH-156/031

ISO: NVRC15-3ULH-156/031

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR67079
Delivery date: 3-5 days
$100.68

Details

Thread Turning U Style for Coarse Pitch Holders IN LH Shank Diameter 20 (mm), Tool Overhang 38 (mm), Insert Compatibility for 3UI

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Int.Groove Threading, Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Insert Size Ic 11
Tool Material Steel
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Type Boring Bar
Overall Len 7.0866 180.00MM
Neck Dia 0.6063
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Inter/Extern Internal
Insert Style ISO
Fasteners & Connectors
Clamp Screw SN3TM
