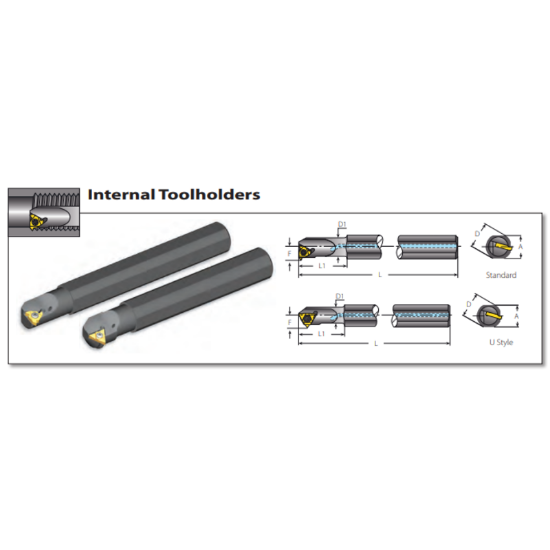

Picture of VARDEX NVRC14-3U-156/018 Boring Bar Iso Thread

VARDEX NVRC14-3U-156/018 Boring Bar Iso Thread

ANSI: NVRC14-3U-156/018

ISO: NVRC14-3U-156/018

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66317
Delivery date: 3-5 days
$100.68

Details

Thread Turning U Style for Coarse Pitch Holders IN RH Shank Diameter 20 (mm), Tool Overhang 38 (mm), Insert Compatibility for 3UI

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Shipping State Wisconsin
Insert Type Positive
Insert/Tool Tool
Application Int.Threading, Int.Groove Threading
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Tool Material Steel
Shank/Pilot Dia 0.7874 20.00MM
Neck Dia 0.5276
Overall Len 7.0866 180.00MM
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 11
Cutting & Machining Properties
Coolant Thru Yes
Insert Style ISO
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw SN3TM
