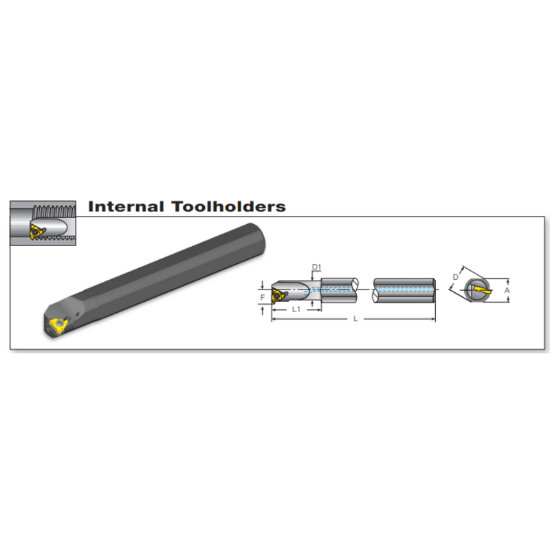

Picture of VARDEX NVRC10-2 Boring Bar Iso Thread

VARDEX NVRC10-2 Boring Bar Iso Thread

ANSI: NVRC10-2

ISO: NVRC10-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR66371
Delivery date: 3-5 days
$129.77

Details

Thread Turning Standard Holders IN RH Shank Diameter 20 (mm), Tool Overhang 25 (mm), Insert Compatibility for 2IR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Groove Threading, Int.Threading
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Neck Dia 0.3937
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Insert Size Ic 11
Min Bore 0.5118
Machine Side Connection Type Boring Bar
Overall Len 7.0866 180.00MM
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw SN2T
