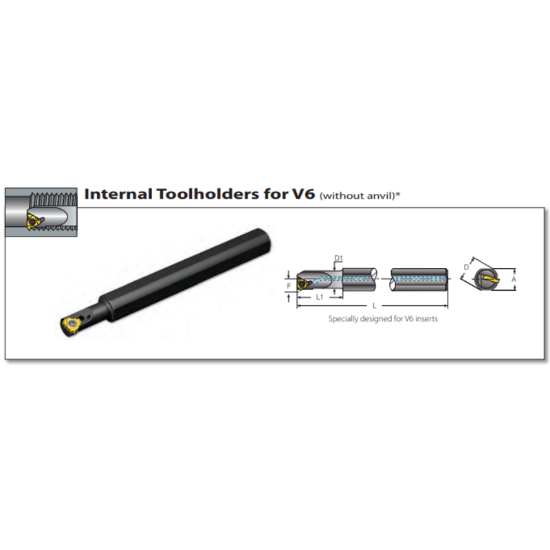

Picture of VARDEX NVRC050-3V6 Boring Bar Iso Thread

VARDEX NVRC050-3V6 Boring Bar Iso Thread

ANSI: NVRC050-3V6

ISO: NVRC050-3V6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66231
Delivery date: 3-5 days
$123.75

Details

Thread Turning Standard Holders IN RH Shank Diameter 3/4" (Inch), Tool Overhang 1.25" (Inch), Insert Compatibility for 3IR

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Int.Groove Threading, Int.Threading
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Min Bore 0.6700
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 7.0000 177.80MM
Machine Side Connection Size 0.7500 19.05MM
Neck Dia 0.5000
Machine Side Connection Type Boring Bar
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Insert Style ISO
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw SN3TM
