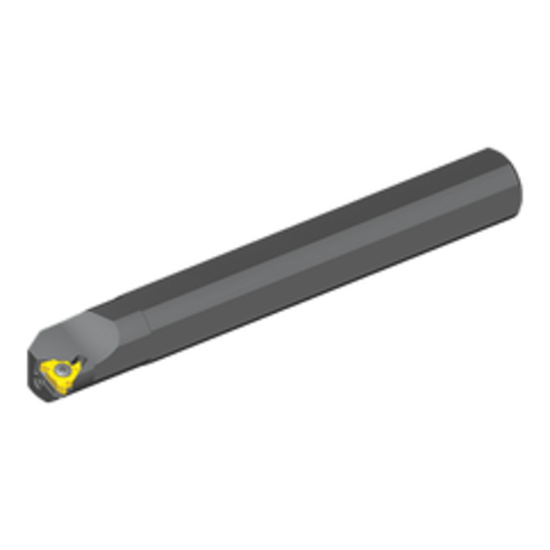

Picture of VARDEX NVR20-4LH Boring Bar Iso Thread

VARDEX NVR20-4LH Boring Bar Iso Thread

ANSI: NVR20-4LH

ISO: NVR20-4LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66370
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Standard Holders IN LH Shank Diameter 20 (mm), Tool Overhang 80 (mm), Insert Compatibility for 4IL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Groove Threading, Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Insert Size Ic 22
Overall Len 7.0866 180.00MM
Neck Dia 0.7874
Machine Side Connection Size 0.7874 20.00MM
Min Bore 1.0630
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw SN4T
