Picture of VARDEX NL150-5MG12RD Stick Tool Proprietary

VARDEX NL150-5MG12RD Stick Tool Proprietary

ANSI: NL150-5MG12RD

ISO: NL150-5MG12RD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66532
Delivery date: 3-5 days
$169.98

Details

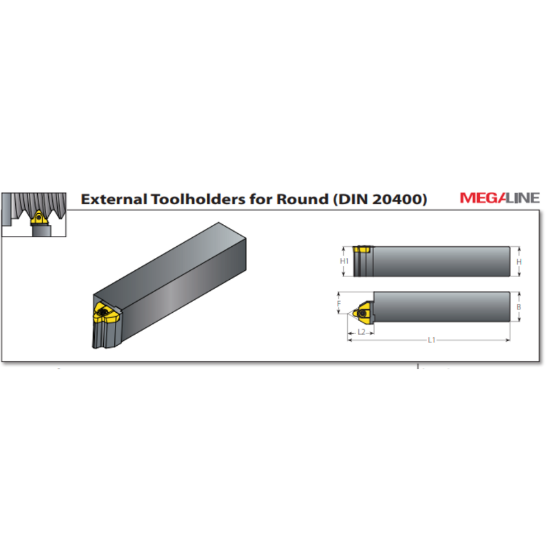

Thread Turning Mega Line Holders EX RH 1.5" (Inch)x1.5" (Inch) Shank, Insert Compatibility for 5MGER

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Application Ext.Threading
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 5MGER
Tool Over Hang 0.8700
Machine Side Connection Size 1.5000 38.10MM
Overall Len 8.0700 204.98MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Cutting & Machining Properties
Insert Style VA
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Hand R/L Right
Fasteners & Connectors
Clamp Screw S5MG
