Picture of VARDEX NL100-5MG20ISO Stick Tool Proprietary

VARDEX NL100-5MG20ISO Stick Tool Proprietary

ANSI: NL100-5MG20ISO

ISO: NL100-5MG20ISO

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66459
Delivery date: 3-5 days
$288.09

Details

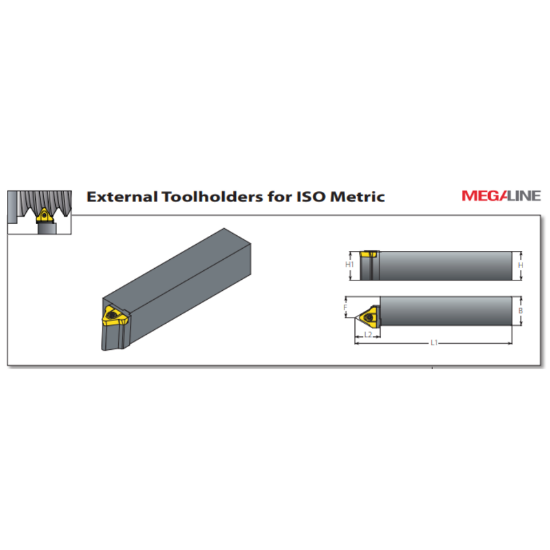

Thread Turning Mega Line Holders EX RH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 5MGER

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 5MGER
Tool Over Hang 0.8700
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.0000
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.1000 154.94MM
Cutting & Machining Properties
Inter/Extern External
Hand R/L Right
Insert Style VA
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw S5MG
