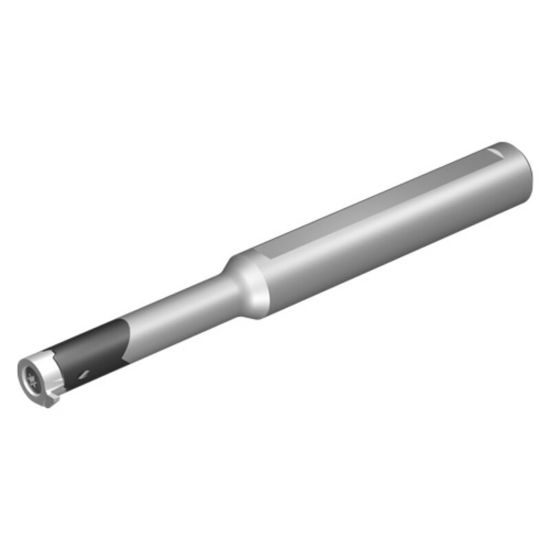

Picture of VARDEX CV11-1242 Boring Bar Proprietary

VARDEX CV11-1242 Boring Bar Proprietary

ANSI: CV11-1242

ISO: CV11-1242

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR28307
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Mini-V Carbide Shank Holders IN RH Shank Diameter 12 (mm), Tool Overhang 42 (mm), Insert Compatibility for V11TH

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Tool
Application Int.Threading
Insert Type Positive
Dimensional Specifications
Neck Dia 0.3150
Machine Side Connection Size 0.4724 12.00MM
Overall Len 4.3307 110.00MM
Machine Side Connection Type Boring Bar
Tool Material Carbide
Shank/Pilot Dia 0.4724 12.00MM
Insert Size Ic V11TH
Cutting & Machining Properties
Inter/Extern Internal
Insert Style VA
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw SNV11
