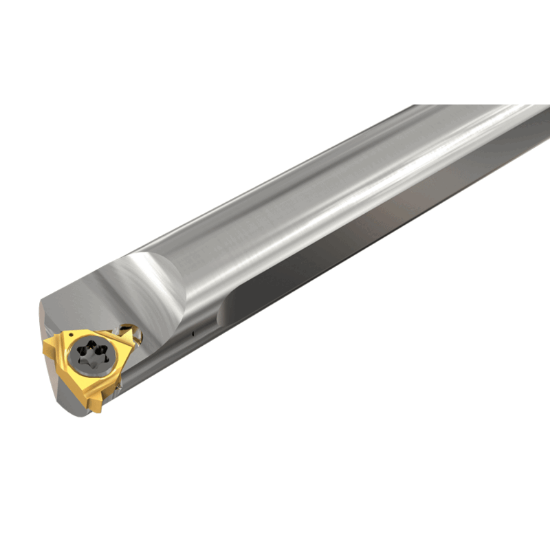

Picture of VARDEX CNVRC0205-4.0KLH Boring Bar Proprietary

VARDEX CNVRC0205-4.0KLH Boring Bar Proprietary

ANSI: CNVRC0205-4.0KLH

ISO: CNVRC0205-4.0KLH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66320
Delivery date: 3-5 days
$299.48

Details

Thread Turning Mini3 IC4.0K Holders IN LH Shank Diameter 1/4" (Inch), Tool Overhang 1.02" (Inch), Insert Compatibility for 4.0KIL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Int.Threading
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Insert Size Ic 4
Overall Len 4.0000 101.60MM
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Neck Dia 0.2000
Machine Side Connection Type Boring Bar
Min Bore 0.2400
Cutting & Machining Properties
Insert Style VA
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw SN4MT
