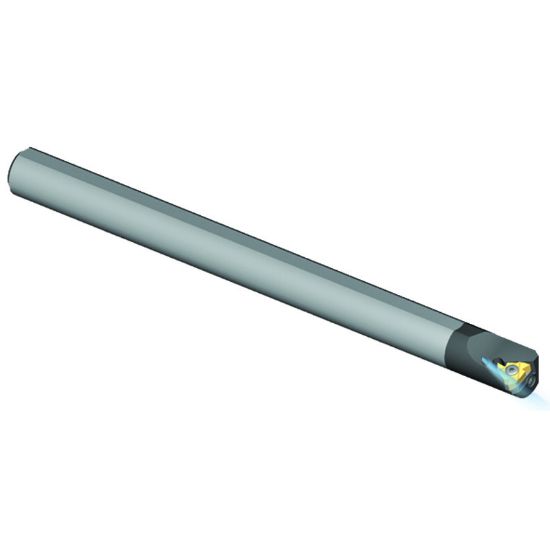

Picture of VARDEX CAVRC075-3LH Boring Bar Iso Thread

VARDEX CAVRC075-3LH Boring Bar Iso Thread

ANSI: CAVRC075-3LH

ISO: CAVRC075-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66195
Delivery date: 3-5 days
$952.12

Details

Thread Turning Carbide Shank Holders IN LH Shank Diameter 3/4" (Inch), Tool Overhang 4.5" (Inch), Insert Compatibility for 3IL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Int.Threading, Int.Groove Threading
Insert/Tool Insert
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Overall Len 10.0000 254.00MM
Neck Dia 0.7500
Machine Side Connection Type Boring Bar
Insert Size Ic 16
Tool Material Carbide
Min Bore 0.9000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest YE3
Insert Style ISO
Hand R/L Left
Inter/Extern Internal
Coolant Thru Yes
Fasteners & Connectors
Seat Screw SY3T
Clamp Screw SA3T
