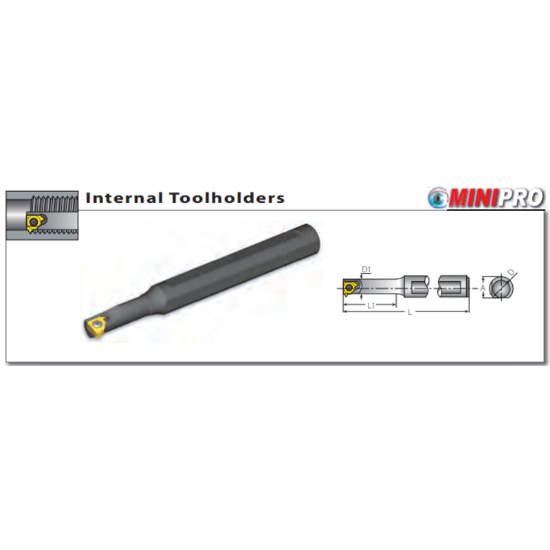

Picture of VARDEX BNVR10M-5L Boring Bar Proprietary

VARDEX BNVR10M-5L Boring Bar Proprietary

ANSI: BNVR10M-5L

ISO: BNVR10M-5L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR67329
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Mini L Holders IN RH Shank Diameter 10 (mm), Tool Overhang 31 (mm), Insert Compatibility for 5LIR

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Made In USA No
Insert Application General Purpose
Shipping State Wisconsin
Application Int.Threading
Insert/Tool Tool
Dimensional Specifications
Neck Dia 0.2441
Machine Side Connection Type Boring Bar
Overall Len 3.8189 97.00MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style VA
Hand R/L Right
Inter/Extern Internal
Fasteners & Connectors
Clamp Screw SN5LT
