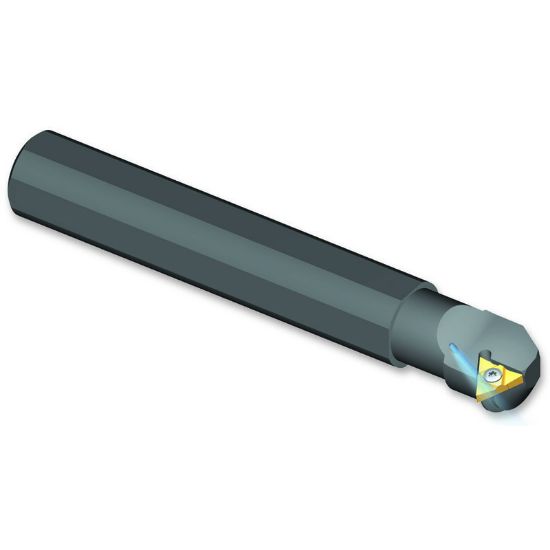

Picture of VARDEX AVRC250-5ULH Boring Bar Iso Thread

VARDEX AVRC250-5ULH Boring Bar Iso Thread

ANSI: AVRC250-5ULH

ISO: AVRC250-5ULH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66313
Delivery date: 3-5 days
$458.93

Details

Thread Turning U Style Holders IN LH Shank Diameter 2 1/2" (Inch), Tool Overhang 10" (Inch), Insert Compatibility for 5UI

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Application Int.Groove Threading, Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Neck Dia 2.5000
Overall Len 16.0000 406.40MM
Insert Size Ic 27
Machine Side Connection Type Boring Bar
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Min Bore 2.9000
Shank/Pilot Dia 2.5000 63.50MM -2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
Insert Style ISO
Hand R/L Left
Coolant Thru Yes
Seat/Nest YE5U
Fasteners & Connectors
Clamp Screw SA5T
Seat Screw SY5T
