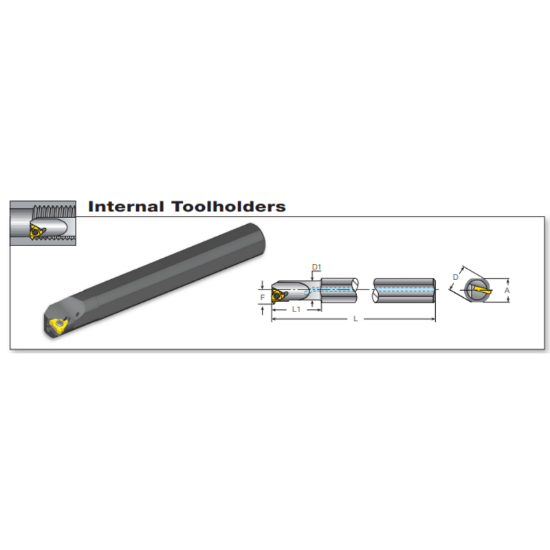

Picture of VARDEX AVRC100D-4 Boring Bar Iso Thread

VARDEX AVRC100D-4 Boring Bar Iso Thread

ANSI: AVRC100D-4

ISO: AVRC100D-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66106
Delivery date: 3-5 days
$187.09

Details

Thread Turning Standard Holders IN RH Shank Diameter 1" (Inch), Tool Overhang 4" (Inch), Insert Compatibility for 4IR

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Threading, Int.Groove Threading
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 22
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 8.0000 203.20MM
Neck Dia 1.0000
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.0000 25.40MM
Min Bore 1.2500
Cutting & Machining Properties
Seat/Nest YI4
Inter/Extern Internal
Insert Style ISO
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp Screw SA4T
Seat Screw SY4T
