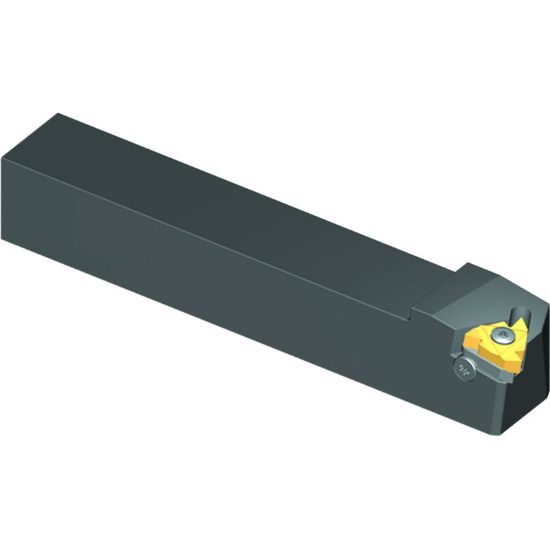

Picture of VARDEX AL3/8-3LH Stick Tool Iso Thread

VARDEX AL3/8-3LH Stick Tool Iso Thread

ANSI: AL3/8-3LH

ISO: AL3/8-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66092
Delivery date: 3-5 days
$98.21

Details

Thread Turning Standard Holders EX LH 9.52 (mm)x9.521 (mm) Shank, Insert Compatibility for 3EL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Tool Over Hang 0.8071
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.3748 9.52MM
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.5039 63.60MM
Tool Width 0.3750
Cutting & Machining Properties
Hand R/L Left
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Seat/Nest YI3
Fasteners & Connectors
Seat Screw SY3T
Clamp Screw SA3T
