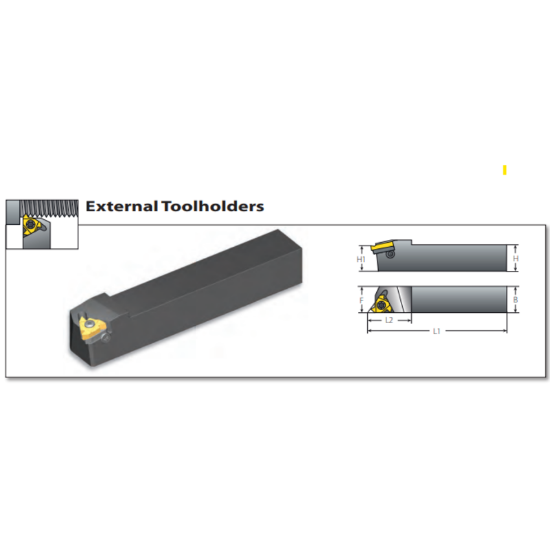

Picture of VARDEX AL3/8-3 Stick Tool Iso Thread

VARDEX AL3/8-3 Stick Tool Iso Thread

ANSI: AL3/8-3

ISO: AL3/8-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66091
Delivery date: 3-5 days
$98.21

Details

Thread Turning Standard Holders EX RH 9.52 (mm)x9.521 (mm) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Insert Type Positive
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3748 9.52MM
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.5039 63.60MM
Tool Width 0.3750
Insert Size Ic 16
Tool Over Hang 0.8071
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Style ISO
Hand R/L Right
Seat/Nest YE3
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Fasteners & Connectors
Seat Screw SY3T
Clamp Screw SA3T
