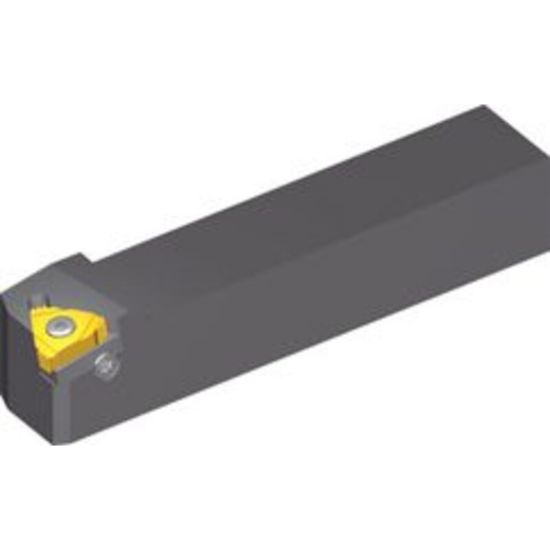

Picture of VARDEX AL32-5M Stick Tool Iso Thread

VARDEX AL32-5M Stick Tool Iso Thread

ANSI: AL32-5M

ISO: AL32-5M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66094
Delivery date: 3-5 days
$342.80

Details

Thread Turning M Style Holders EX RH 32 (mm)x32 (mm) Shank, Insert Compatibility for 5ER…M+

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 1.2598 32.00MM
Tool Width 1.2598
Insert Size Ic 27
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.9500 176.53MM
Machine Side Connection Size 1.2598 32.00MM
Tool Over Hang 1.5748
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Seat/Nest YE5M
Hand R/L Right
Insert Style ISO
Coolant Thru No
Fasteners & Connectors
Clamp Screw SA5T
Seat Screw SY5T
