Picture of VARDEX AL25-4 Stick Tool Iso Thread

VARDEX AL25-4 Stick Tool Iso Thread

ANSI: AL25-4

ISO: AL25-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66089
Delivery date: 3-5 days
$126.36

Details

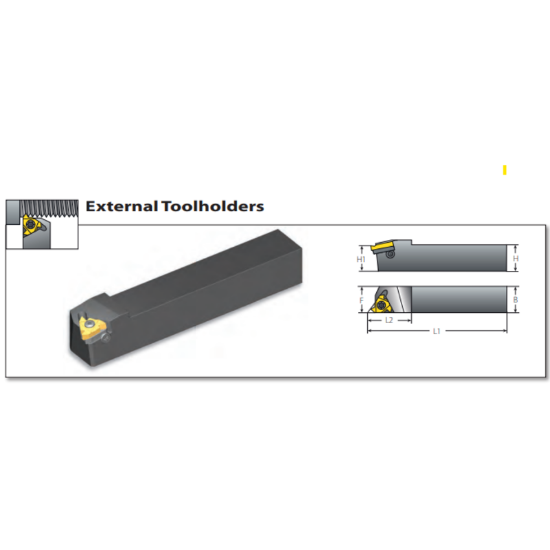

Thread Turning Standard Holders EX RH 25 (mm)x25 (mm) Shank, Insert Compatibility for 4ER

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Threading, Ext.Threading
Insert/Tool Tool
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Overall Len 6.1299 155.70MM
Tool Over Hang 1.4173
Tool Width 0.9843
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 22
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Inter/Extern External
Coolant Thru No
Seat/Nest YE4
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Seat Screw SY4T
Clamp Screw SA4T
