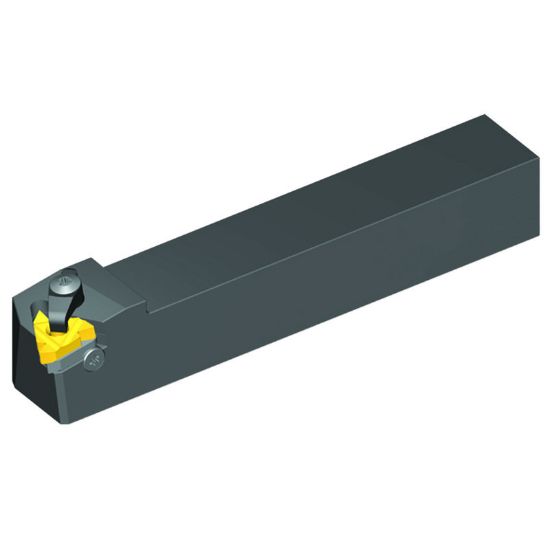

Picture of VARDEX AL25-3C Stick Tool Iso Thread

VARDEX AL25-3C Stick Tool Iso Thread

ANSI: AL25-3C

ISO: AL25-3C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66093
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Standard with Clamp Holders EX RH 25 (mm)x25 (mm) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert Type Positive
Insert/Tool Insert
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Overall Len 6.0472 153.60MM
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 16
Tool Over Hang 1.1811
Tool Width 0.9843
Cutting & Machining Properties
Seat/Nest YE3
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Right
Fasteners & Connectors
Seat Screw SY3T
Clamp/Wedge C3
Clamp Screw SA3T
