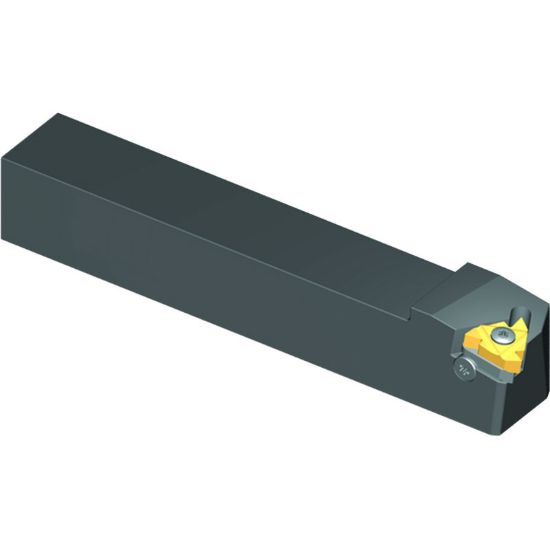

Picture of VARDEX AL20-3LH Stick Tool Iso Thread

VARDEX AL20-3LH Stick Tool Iso Thread

ANSI: AL20-3LH

ISO: AL20-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66083
Delivery date: 3-5 days
$112.49

Details

Thread Turning Standard Holders EX LH 20 (mm)x20 (mm) Shank, Insert Compatibility for 3EL

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Threading, Ext.Threading
Insert/Tool Insert
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Over Hang 1.1811
Machine Side Connection Size 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.0630 128.60MM
Shank/Pilot Dia 0.7874 20.00MM
Tool Width 0.7874
Insert Size Ic 16
Cutting & Machining Properties
Seat/Nest YI3
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Insert Style ISO
Hand R/L Left
Fasteners & Connectors
Seat Screw SY3T
Clamp Screw SA3T
