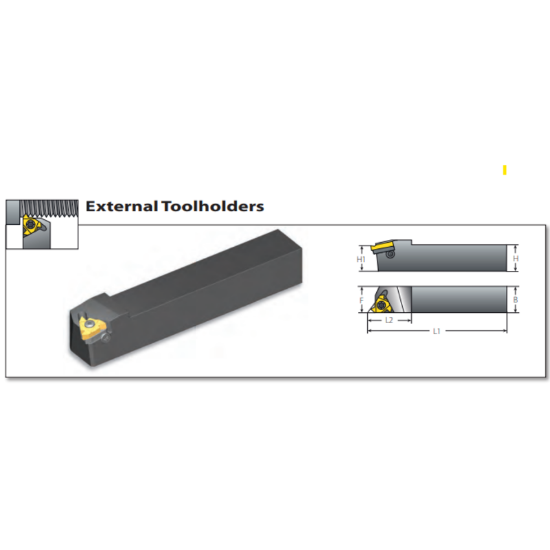

Picture of VARDEX AL16-3 Stick Tool Iso Thread

VARDEX AL16-3 Stick Tool Iso Thread

ANSI: AL16-3

ISO: AL16-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66078
Delivery date: 3-5 days
$116.42

Details

Thread Turning Standard Holders EX RH 16 (mm)x16 (mm) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Overall Len 3.9370 100.00MM
Tool Width 0.6299
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16
Tool Over Hang 0.8071
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Insert Style ISO
Hand R/L Right
Seat/Nest YE3
Fasteners & Connectors
Clamp Screw SA3T
Seat Screw SY3T
