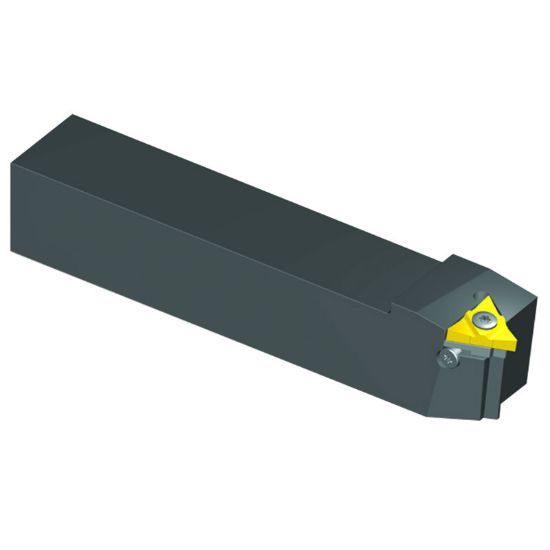

Picture of VARDEX AL125-5ULH Stick Tool Iso Thread

VARDEX AL125-5ULH Stick Tool Iso Thread

ANSI: AL125-5ULH

ISO: AL125-5ULH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66061
Delivery date: 3-5 days
$183.91

Details

Thread Turning U Style Holders EX LH 1.25" (Inch)x1.25" (Inch) Shank, Insert Compatibility for 5UE

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Package Size 1
Application Int.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.0000 177.80MM
Insert Size Ic 27
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Over Hang 1.5700
Tool Width 1.2500
Cutting & Machining Properties
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Seat/Nest YI5U
Hand R/L Left
Fasteners & Connectors
Clamp Screw SA5T
Seat Screw SY5T
