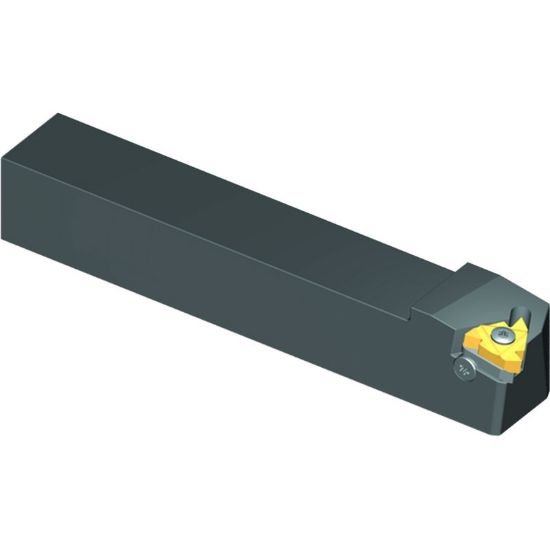

VARDEX AL125-4LH Stick Tool Iso Thread

ANSI: AL125-4LH

ISO: AL125-4LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66047
Delivery date: 3-5 days
$128.64

Details

Thread Turning Standard Holders EX LH 1.25" (Inch)x1.25" (Inch) Shank, Insert Compatibility for 4EL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Dimensional Specifications
Insert Size Ic 22
Tool Width 1.2500
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Over Hang 1.4200
Overall Len 7.0000 177.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Seat/Nest YI4
Insert Style ISO
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Clamp Screw SA4T
Seat Screw SY4T
