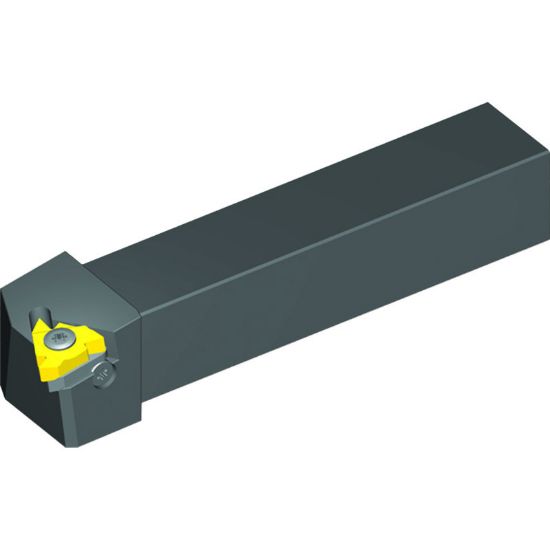

Picture of VARDEX AL125-4FQ Stick Tool Iso Thread

VARDEX AL125-4FQ Stick Tool Iso Thread

ANSI: AL125-4FQ

ISO: AL125-4FQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66045
Delivery date: 3-5 days
$187.68

Details

Thread Turning FQ - OffSet Qualified Holders EX RH 1.25" (Inch)x1.25" (Inch) Shank, Insert Compatibility for 4ER

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Over Hang 1.2000
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 22
Tool Width 1.2500
Cutting & Machining Properties
Coolant Thru No
Insert Style ISO
Hand R/L Right
Seat/Nest YE4
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Fasteners & Connectors
Clamp Screw SA4T
Seat Screw SY4T
