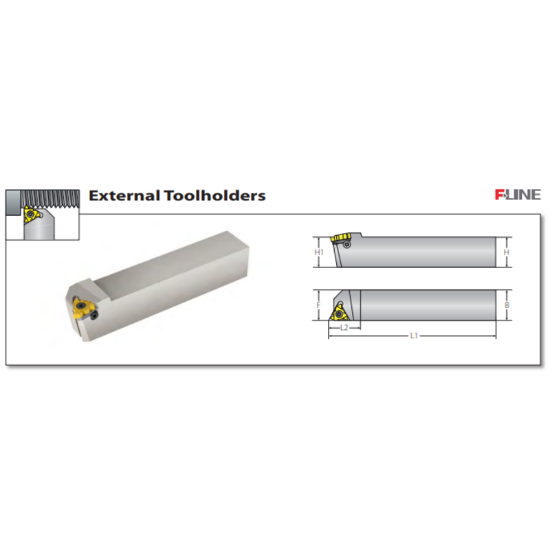

Picture of VARDEX AL125-4F Stick Tool Iso Thread

VARDEX AL125-4F Stick Tool Iso Thread

ANSI: AL125-4F

ISO: AL125-4F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66661
Delivery date: 3-5 days
$187.08

Details

Thread Turning F Style Holders EX RH 1.25" (Inch)x1.25" (Inch) Shank, Insert Compatibility for 4FER

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Overall Len 7.0000 177.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.2500
Insert Size Ic 22
Machine Side Connection Size 1.2500 31.75MM
Tool Over Hang 1.3000
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Seat/Nest YE4F
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Fasteners & Connectors
Clamp Screw SA4T
Seat Screw SY4T
