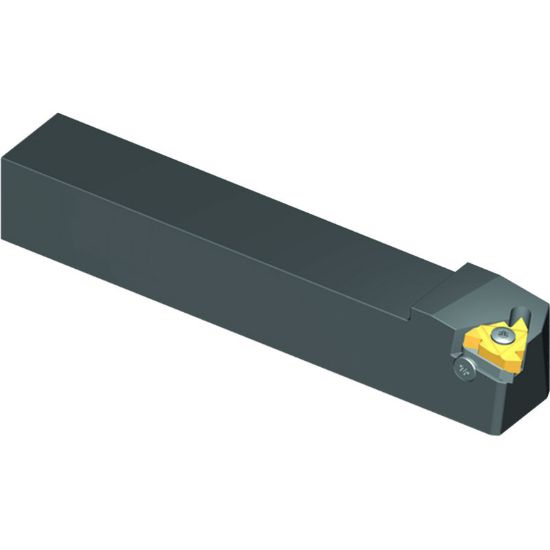

Picture of VARDEX AL125-3LH Stick Tool Iso Thread

VARDEX AL125-3LH Stick Tool Iso Thread

ANSI: AL125-3LH

ISO: AL125-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66041
Delivery date: 3-5 days
$124.99

Details

Thread Turning Standard Holders EX LH 1.25" (Inch)x1.25" (Inch) Shank, Insert Compatibility for 3EL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Insert
Application Ext.Groove Threading, Ext.Threading
Package Size 1
Dimensional Specifications
Tool Over Hang 1.1800
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Width 1.2500
Insert Size Ic 16
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Left
Seat/Nest YI3
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Seat Screw SY3T
Clamp Screw SA3T
