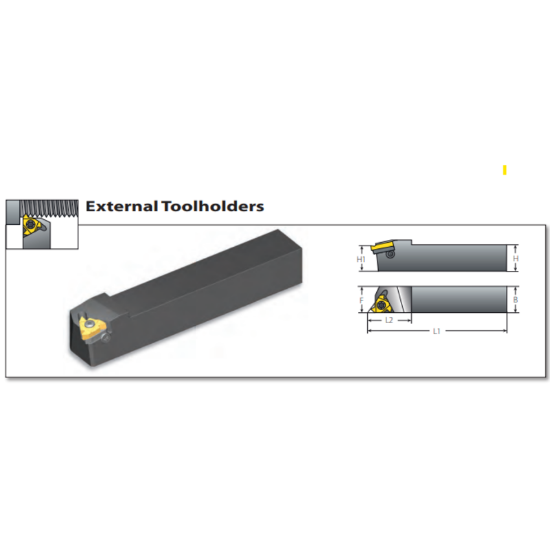

Picture of VARDEX AL125-3 Stick Tool Iso Thread

VARDEX AL125-3 Stick Tool Iso Thread

ANSI: AL125-3

ISO: AL125-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66036
Delivery date: 3-5 days
$124.99

Details

Thread Turning Standard Holders EX RH 1.25" (Inch)x1.25" (Inch) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Insert
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.1800
Insert Size Ic 16
Overall Len 7.0000 177.80MM
Tool Width 1.2500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Seat/Nest YE3
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Insert Style ISO
Hand R/L Right
Fasteners & Connectors
Seat Screw SY3T
Clamp Screw SA3T
