Picture of VARDEX AL12-3 Stick Tool Iso Thread

VARDEX AL12-3 Stick Tool Iso Thread

ANSI: AL12-3

ISO: AL12-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66335
Delivery date: 3-5 days
$107.11

Details

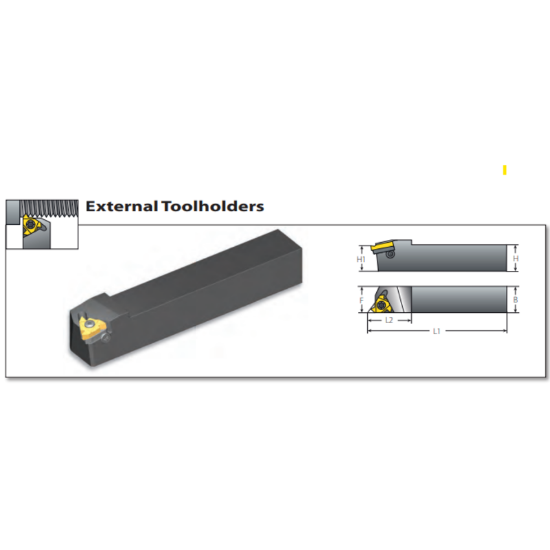

Thread Turning Standard Holders EX RH 12 (mm)x12 (mm) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Insert
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.2756 83.20MM
Insert Size Ic 16
Shank/Pilot Dia 0.4724 12.00MM
Tool Width 0.4724
Machine Side Connection Size 0.4724 12.00MM
Tool Over Hang 0.8661
Cutting & Machining Properties
Seat/Nest YE3
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style ISO
Hand R/L Right
Fasteners & Connectors
Clamp Screw SA3T
Seat Screw SY3T
