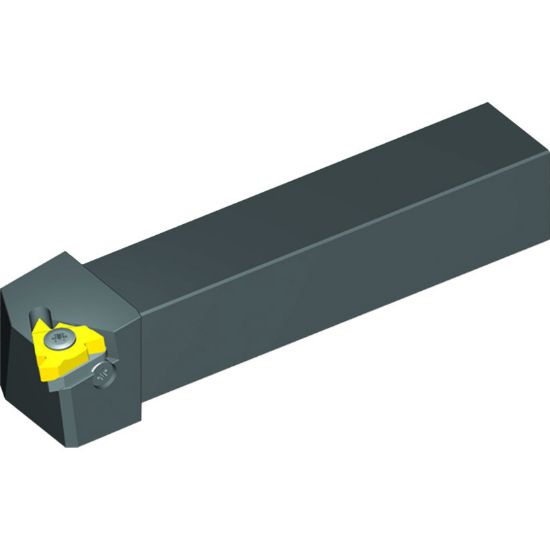

Picture of VARDEX AL100-4FQ Stick Tool Iso Thread

VARDEX AL100-4FQ Stick Tool Iso Thread

ANSI: AL100-4FQ

ISO: AL100-4FQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66027
Delivery date: 3-5 days
$185.65

Details

Thread Turning FQ - OffSet Qualified Holders EX RH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 4ER

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Dimensional Specifications
Insert Size Ic 22
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.0000
Tool Over Hang 1.2000
Cutting & Machining Properties
Seat/Nest YE4
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Right
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Seat Screw SY4T
Clamp Screw SA4T
