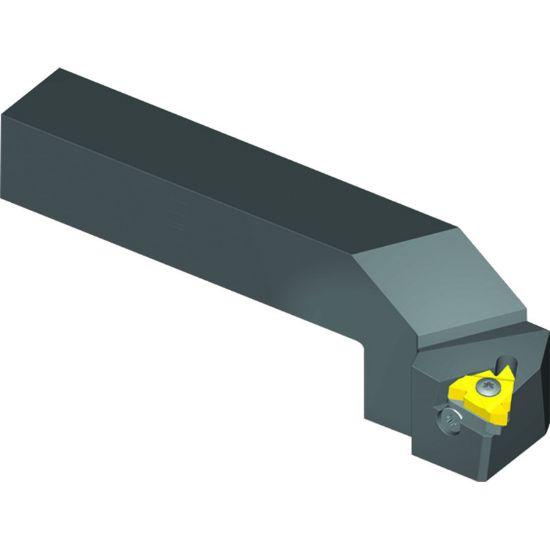

Picture of VARDEX AL100-3CQLH Stick Tool Iso Thread

VARDEX AL100-3CQLH Stick Tool Iso Thread

ANSI: AL100-3CQLH

ISO: AL100-3CQLH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66019
Delivery date: 3-5 days
$180.26

Details

Thread Turning CQ - Drop Head Qualified Holders EX LH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Ext.Groove Threading, Ext.Threading
Package Size 1
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Over Hang 0.8800
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.0000
Cutting & Machining Properties
Seat/Nest YI3
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge C3
Clamp Screw SA3T
Seat Screw SY3T
