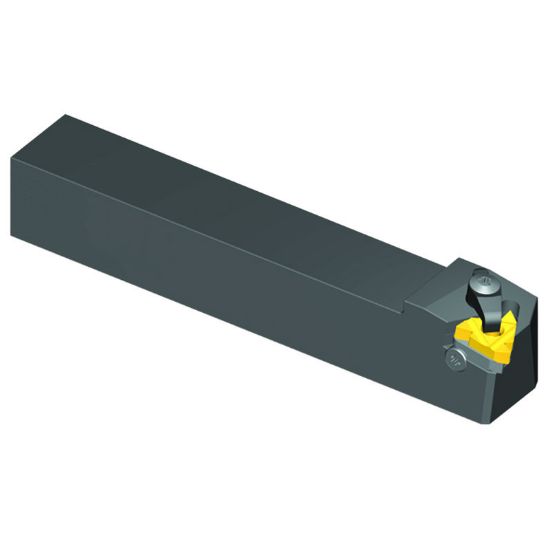

Picture of VARDEX AL100-3CLH Stick Tool Iso Thread

VARDEX AL100-3CLH Stick Tool Iso Thread

ANSI: AL100-3CLH

ISO: AL100-3CLH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR66328
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Thread Turning Standard with Clamp Holders EX LH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 3EL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Insert
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Tool Over Hang 1.2000
Cutting & Machining Properties
Seat/Nest YI3
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Hand R/L Left
Coolant Thru No
Insert Style ISO
Fasteners & Connectors
Seat Screw SY3T
Clamp/Wedge C3
Clamp Screw SA3T
