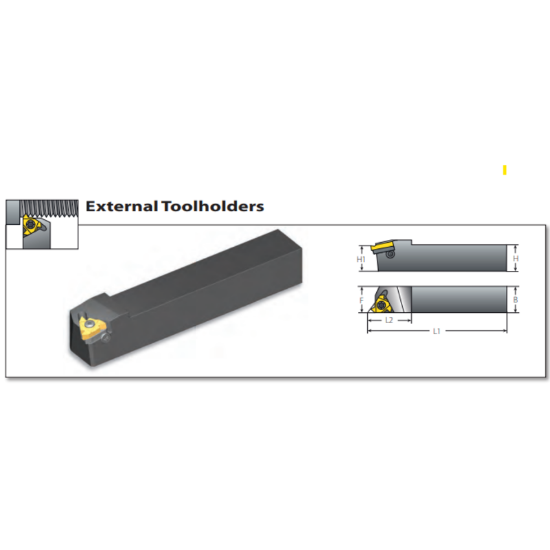

Picture of VARDEX AL100-3 Stick Tool Iso Thread

VARDEX AL100-3 Stick Tool Iso Thread

ANSI: AL100-3

ISO: AL100-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66016
Delivery date: 3-5 days
$112.49

Details

Thread Turning Standard Holders EX RH 1" (Inch)x1" (Inch) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 16
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 1.2000
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Seat/Nest YE3
Fasteners & Connectors
Clamp/Wedge C3
Clamp Screw SA3T
Seat Screw SY3T
