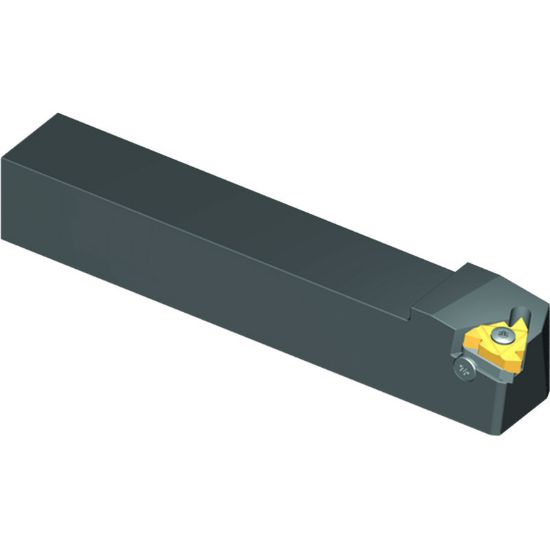

Picture of VARDEX AL075-3LH Stick Tool Iso Thread

VARDEX AL075-3LH Stick Tool Iso Thread

ANSI: AL075-3LH

ISO: AL075-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66013
Delivery date: 3-5 days
$107.11

Details

Thread Turning Standard Holders EX LH 0.75" (Inch)x0.75" (Inch) Shank, Insert Compatibility for 3EL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 16
Tool Over Hang 1.0200
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Left
Inter/Extern External
Coolant Thru No
Seat/Nest YI3
Fasteners & Connectors
Seat Screw SY3T
Clamp/Wedge C3
Clamp Screw SA3T
