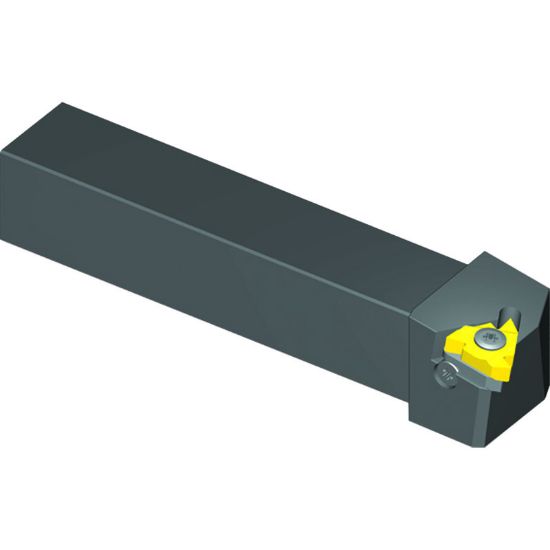

Picture of VARDEX AL075-3FQLH Stick Tool Iso Thread

VARDEX AL075-3FQLH Stick Tool Iso Thread

ANSI: AL075-3FQLH

ISO: AL075-3FQLH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66012
Delivery date: 3-5 days
$124.99

Details

Thread Turning FQ - OffSet Qualified Holders EX LH 0.75" (Inch)x0.75" (Inch) Shank, Insert Compatibility for 3/8 EL

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert Type Positive
Insert/Tool Insert
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Over Hang 1.0000
Insert Size Ic 16
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Hand R/L Left
Insert Style ISO
Seat/Nest YI3
Fasteners & Connectors
Clamp/Wedge C3
Clamp Screw SA3T
Seat Screw SY3T
