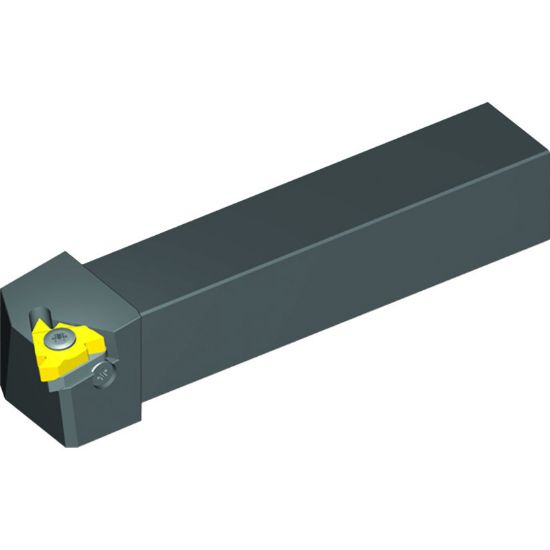

Picture of VARDEX AL075-3FQ Stick Tool Iso Thread

VARDEX AL075-3FQ Stick Tool Iso Thread

ANSI: AL075-3FQ

ISO: AL075-3FQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66011
Delivery date: 3-5 days
$124.99

Details

Thread Turning FQ - OffSet Qualified Holders EX RH 0.75" (Inch)x0.75" (Inch) Shank, Insert Compatibility for 3ER

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Threading, Ext.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Insert/Tool Insert
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Tool Over Hang 6.0000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Seat/Nest YE3
Fasteners & Connectors
Seat Screw SY3T
Clamp/Wedge C3
Clamp Screw SA3T
