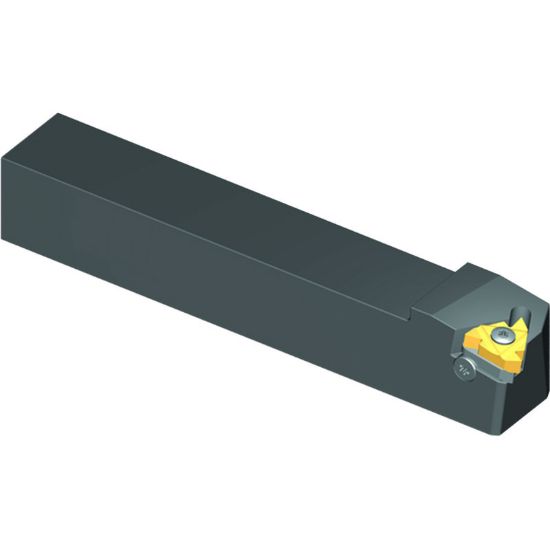

Picture of VARDEX AL050-3LH Stick Tool Iso Thread

VARDEX AL050-3LH Stick Tool Iso Thread

ANSI: AL050-3LH

ISO: AL050-3LH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR66003
Delivery date: 3-5 days
$107.11

Details

Thread Turning Standard Holders EX LH 0.5" (Inch)x0.5" (Inch) Shank, Insert Compatibility for 3EL

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Threading, Ext.Threading
Insert Application General Purpose
Shipping State Wisconsin
Made In USA No
Package Size 1
Insert/Tool Insert
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Width 0.5000
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 0.8700
Insert Size Ic 16
Overall Len 3.2700 83.06MM
Cutting & Machining Properties
Seat/Nest YI3
Insert Style ISO
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Left
Fasteners & Connectors
Clamp Screw SA3T
Seat Screw SY3T
