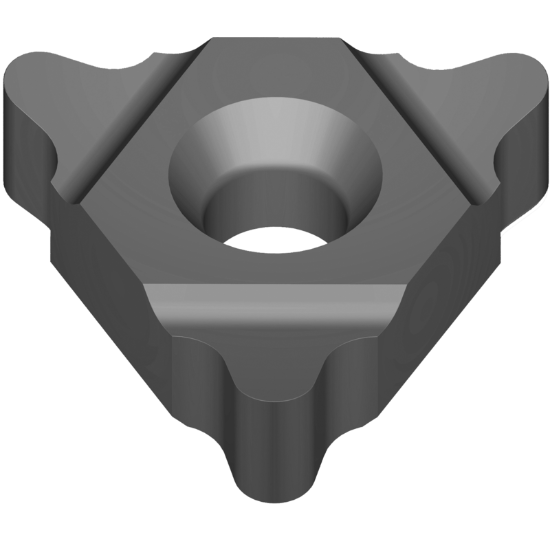

VARDEX 5UEI3.25W VK2P Insert Iso Thread Full Profile 3.25TPI Whitworth BSW/BSF/BSP

ANSI: 5UEI3.25W VK2P

ISO: 5UEI3.25W VK2P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARGUS
SKU: VAR59144
Delivery date: 3-5 days
$39.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

highly polished for exceptional performance for high quality surface finish in aluminium.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Application Int.Threading Insert, Ext.Threading Insert
Shipping State Wisconsin
Insert/Tool Insert
Insert Type Positive
Full Or Partial Profile Full Profile
Grade VK2P
Package Size 10
Dimensional Specifications
Cut Rating Aluminum, High Temp
Insert Size Ic 27
Thread Pitch 3.25TPI
Thread Type Whitworth BSW/BSF/BSP
Cutting & Machining Properties
Thread Teeth 1
Insert Style ISO
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape Triangle
