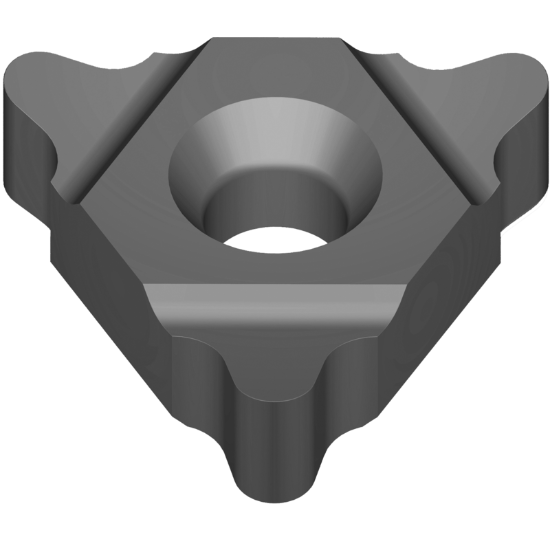

VARDEX 4UEIU60 VK2P Insert Iso Thread Partial Profile 3.25TPI - 4.50TPI 7.82MM - 5.64MM 60.0°

ANSI: 4UEIU60 VK2P

ISO: 4UEIU60 VK2P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR59420
Delivery date: 3-5 days
$31.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

highly polished for exceptional performance for high quality surface finish in aluminium.

Products specifications
Attribute name Attribute value
General Product Information
Grade VK2P
Full Or Partial Profile Partial Profile
Insert/Tool Insert
Insert Application General Purpose
Application Int.Threading Insert, Ext.Threading Insert
Shipping State Wisconsin
Made In USA No
Insert Type Positive
Package Size 10
Dimensional Specifications
Insert Size Ic 22
Thread Pitch 3.25TPI - 4.50TPI 7.82MM - 5.64MM
Thread Type 60.0°
Cut Rating Aluminum, High Temp
Corner Radius 0.0118 0.30MM
Cutting & Machining Properties
Inter/Extern Int / Ext
Thread Teeth 1
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Cutting Edge Mat Carbide
Hand R/L Neutral
