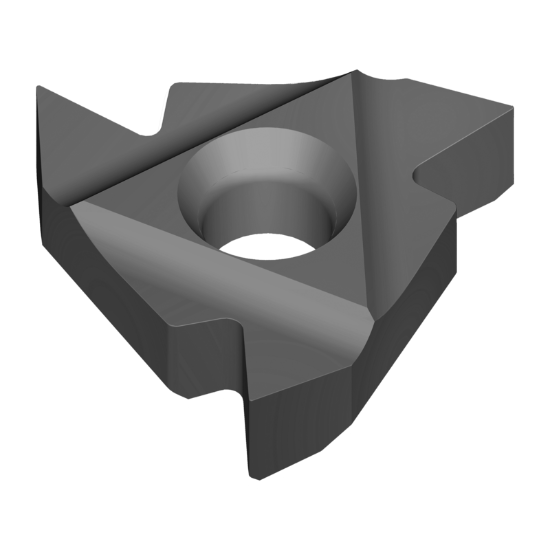

VARDEX 4ERN60 VM7 Insert Iso Thread Partial Profile PVD Multilayer 5.00TPI - 7.00TPI 5.08MM - 3.63MM 60.0°

ANSI: 4ERN60 VM7

ISO: 4ERN60 VM7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VARDEX
SKU: VAR59175
Delivery date: 3-5 days
$31.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

a unique performer when threading stainless steel

Products specifications
Attribute name Attribute value
General Product Information
Full Or Partial Profile Partial Profile
Insert Application General Purpose
Shipping State Wisconsin
Insert/Tool Insert
Application Ext.Threading Insert
Insert Type Positive
Coating PVD Multilayer
Made In USA No
Grade VM7
Package Size 10
Dimensional Specifications
Insert Size Ic 22
Cut Rating Stainless
Thread Pitch 5.00TPI - 7.00TPI 5.08MM - 3.63MM
Corner Radius 0.0209 0.53MM
Thread Type 60.0°
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Cutting Edge Mat Carbide
Thread Teeth 1
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
