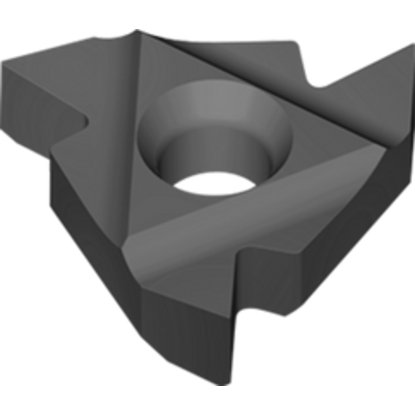

Picture of Vardex 4.0KIRA60 VBX Insert Proprietary Partial Profile TiCN 48.00TPI - 20.00TPI 0.53mm - 1.27mm 60.0°

Vardex 4.0KIRA60 VBX Insert Proprietary Partial Profile TiCN 48.00TPI - 20.00TPI 0.53mm - 1.27mm 60.0°

Part Number: VAR42268 ISO: 4.0KIRA60 VBX ANSI:4.0KIRA60 VBX
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$38.57
This product has a minimum quantity of 10
SKU: 1177506

Description

VARDEX 42268 Triangle Insert Positive TiCN Carbide grade for high-volume steel production
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style VA
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type 60.0°
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 4
Thread Pitch 48.00TPI - 20.00TPI 0.53MM - 1.27MM
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0020 0.05MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TICN
Grade VBX
Compatibility & Fit
Insert Fits Proprietary
